Image Size : At 3.94 ft (1.2m) distance, diagonal projection image size of 36.3" (0.92m). , At 32.81 ft (10m) distance, diagonal projection image size of 362" (9.2m).
Projection Distance : 3.94 ft ~ 32.81 ft(1.2m ~ 10m)
Lamp Life Cycle5 : Up to 2,000 hours Typical , Up to 2,500 hours Eco-Mode
Lamp Type : Philips 300W user-replaceable
Manual Vertical +40 / -35
Audio and Speakers : 2x 5W speaker RMS
Composite Video / S-Video input: NTSC [J, M, 4.43) PAL (B, D, G, H, I, M, N, Nc, 60) SECAM (B, D, G, K, K1, L)
Component Video via VGA input: 480i/p, 576i/p, 720p, 1080i
Component Video via HDMI input: 480i/p, 576i/p, 720p, 1080p

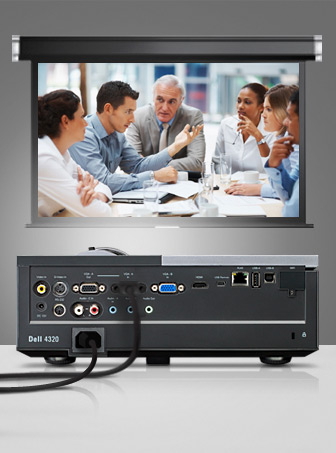

AC power input socket
2x 15-pin D-Sub for analog RGB/component input signals
1x 15-pin D-Sub for VGA-A loop through
1x Composite Video RCA jack for CVBS signal
1x 4-pin S-Video for Y/C signal
1x mini USB-B slave for remote support and firmware update
1x USB-A for USB Viewer
1x USB-B for USB Display
USB Wi-Fi connector for optional wireless functionality (USB wireless dongle sold seperately)
2x 3.5mm stereo mini phone jack and 1x pair of RCA connectors (left/right) for audio input
1x 3.5mm stereo mini phone jack for audio output
1x RJ45 connector for networking
1x HDMI 1.3 (HDCP compliant)
1x mini-DIN 6-pin RS232 port allows connection to a commercial RS232 control box for remote projector control
1x DC jack 12V @200mA output, relay control for automatic projection screen control
