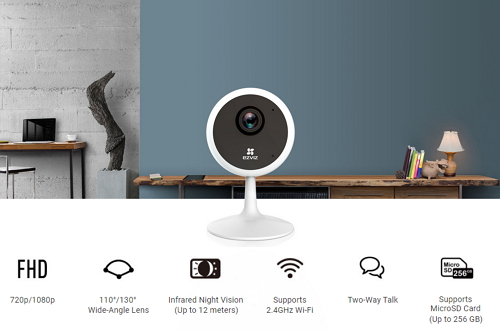

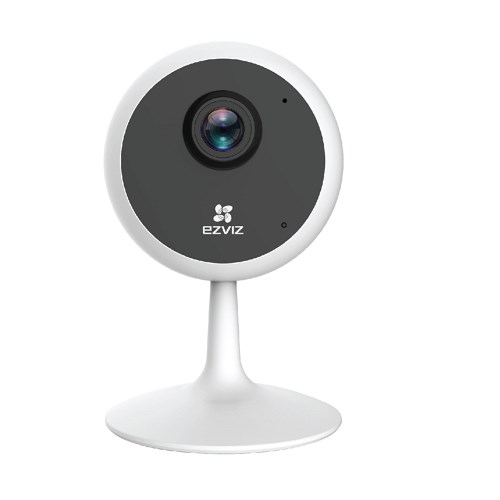

Ezviz C1C Indoor Wi-Fi Camera

HD Resolution Indoor Wi-Fi Camera

This is where smart home security meets sharp night vision. Designed for simple and quick installation, the C1C’s super night vision safeguards every corner – even in places without illumination.

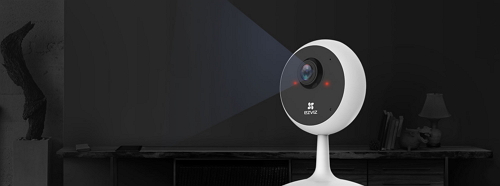

Super Vision, Even at Night

Get better night vision at increased distances with the C1C and enjoy round-the-clock protection. The advanced infrared LED lights along with an upgraded optical configuration means that even in dim light, you can still see up to 12 meters.

Always in the Know

You can’t always be there – or can you? Featuring motion detection, the C1C watches over your property and immediately alerts you on your mobile device with an captured image when anything unusual happens. (Instant alerts must be activated manually.)

Communication Anytime

Talk to your loved ones and deter unwelcome strangers – all by using the C1C’s two-way communication feature. Using the EZVIZ App on your mobile device, you can easily and conveniently enjoy communication wherever you might be

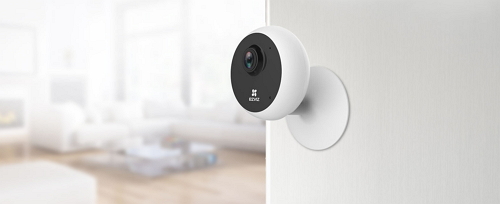

Plug, Clamp and Go

A magnetic base and mounting kits make installation a breeze. Just place the C1C on the shelf or clamp it to the wall or ceiling, and voila! Once set up, you can manually adjust its position to monitor just about anywhere

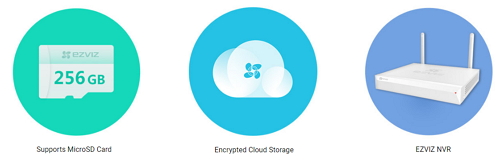

Multiple Storage Solutions

Save your recordings with flexible and secured solutions. The C1C comes with a built-in MicroSD card slot that can store up to 256 GB of recorded footage. You can also save your images to EZVIZ Cloud* for additional back-up.

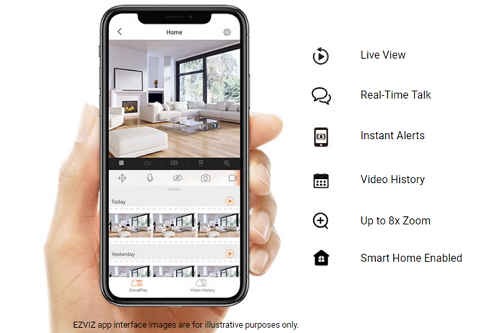

Security at Your Fingertips

With the EZVIZ App and EZVIZ Studio Software, you can capture, save, protect, and share what’s valuable to you.

Specs

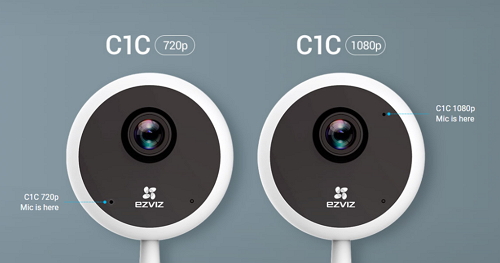

• Model : C1C 720p (CS-C1C-D0-1D1WFR), C1C 1080p (CS-C1C-D0-1D2WFR)

Camera

• Image Sensor: C1C 720p: 1/4" Progressive Scan CMOS , C1C 1080p: 1/2.9" Progressive Scan CMOS
• Shutter Speed: Self-adaptive shutter
• Lens: C1C 720p: 2.8mm, view angle:92 (Horizontal), 110(Diagonal) , 2.8mm, view angle:106? (Horizontal), 130?(Diagonal)
• Lens Mount: M12
• Day & Night: IR-cut filter with auto-switching
• DNR: 3D DNR


• Max. Resolution:  C1C 720p: 1280 x 720, C1C 1080p : 1920 x 1080
• Frame Rate: Max:20fps; Self-adaptive during network transmission

Compression

• Video Compression: H.264
• H.264 Type: Main profile
• Video Bit Rate: C1C 720p : HD; Standard; Basic. Adaptive bit rate, C1C 1080p : Ultra-HD; HD; Standard. Adaptive bit rate
• Auto Bit Rate: Self-adaptive
• Max. Bitrate: 2Mbps

Network

• Smart Alarm: Motion detection
• Wi-Fi Pairing: AP pairing
• Protocol: EZVIZ cloud proprietary protocol
• Interface Protocol: EZVIZ cloud proprietary protocol
• General Features: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Interface

• Storage: Support Micro SD card (Max. 256G)
• Power: Micro USB

Wi-Fi

• Standard: IEEE802.11b, 802.11g, 802.11n
• Frequency Range: 2.4 GHz ~ 2.4835 GHz
• Channel Bandwidth: Supports 20MHz
• Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK
• Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbpss

General

• Requirements: - 10 - 45?C (14 - 113F) Humidity 95% or less (non-condensing)
• Power Supply: DC 5V?10%
• Power Consumption: Max. 4.0W
• IR Range: Max. 12 meters
• Product Dimensions: 64mm x 64mm x 103mm
• Packaging Dimensions: 123mm x 79mm x 125.5mm
• Weight: 96g
