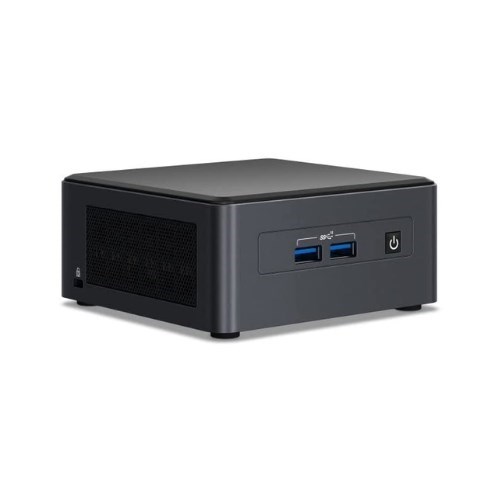

Intel NUC 11 Pro Kit NUC11TNHi50Z00

Specs

• Product CollectionIntel NUC Kit with 11th Generation Intel Core Processors
• Supported Operating Systems: Windows 11 Home*, Windows 11 Pro*, Windows 10 Home, 64-bit*, Windows 10 IoT Enterprise*, Windows 10 Pro, 64-bit*, Red Hat Linux*, Ubuntu 20.04 LTS*
• Board Number: NUC11TNBi50Z
• Board Form Factor: UCFF (4" x 4")
• Socket: Soldered-down BGA
• Internal Drive Form Factor: M.2 and 2.5" Drive
• # of Internal Drives Supported: 3
• Lithography: 10 nm SuperFin
• TDP: 28 W
• DC Input Voltage Supported: 12-20 VDC
• Processor Included: Intel Core? i5-1135G7 Processor (8M Cache, up to 4.20 GHz)
• Total Cores: 4
• Total Threads : 8
• Max Turbo Frequency : 4.20 GHz

Supplemental Information

• Embedded Options Available: No

Memory & Storage

• Memory Types: DDR4-3200 1.2V SO-DIMMs
• Max # of Memory Channels: 2
• Max # of DIMMs: 2
• ECC Memory Supported : No

Processor Graphics

• Integrated Graphics : Yes
• Graphics Output : Dual HDMI 2.0b w/HDMI CEC
• # of Displays Supported: 2

Expansion Options

• PCI Express Revision: Gen 4 (m.2 22x80 slot); Gen 3 (otherwise)
• PCI Express Configurations: PCIe x4 Gen 4: M.2 22x80 (key M), PCIe x1 Gen 3: M.2 22x42 (key B), PCIe x1: M.2 22x30 (key E)
• M.2 Card Slot (wireless): 22x30 (E)
• M.2 Card Slot (storage) : 22x80 NVMe (M); 22x42 SATA (B)

I/O Specifications

• # of USB Ports: 4
• Total # of SATA Ports: 1
• Serial Port via Internal Header: Yes
• Integrated LAN: Intel Ethernet Controller i225-LM
• Integrated Wireless: Intel Wi-Fi 6 AX201
• Integrated Bluetooth: Yes
• Additional Headers: Front_panel (PWR, RST, 5V, 5Vsby, 3.3Vsby); Internal 2x2 power connector

USB Configuration

• Front: 2x USB 3.2
• Rear: 1x USB 3.2, 1x USB 2.0
• Internal: 1x USB 3.2 on m.2 22x42 (pins), 2x USB 2.0 (headers)

Package Specifications

• Chassis Dimensions: 117 x 112 x 54 [mm] (LxWxH)

Advanced Technologies

• Intel Optane Memory Supported : No
• Intel Virtualization Technology for Directed I/O (VT-d) : Yes
• Intel ME Firmware Version : 15
• Intel Virtualization Technology (VT-x) : Yes
• Intel Platform Trust Technology (Intel PTT) : Yes

Security & Reliability

• Intel AES New Instructions : Yes
