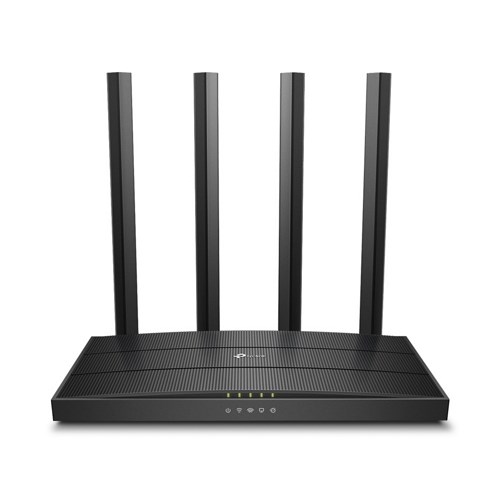

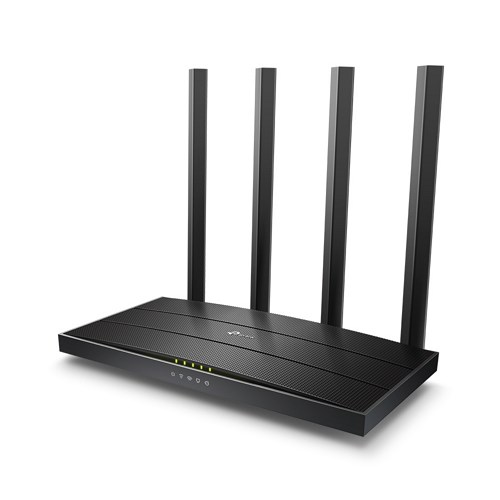

Tp-link AC1900 Wireless MU-MIMO Wi-Fi Router (Archer C80)
HARDWARE FEATURES

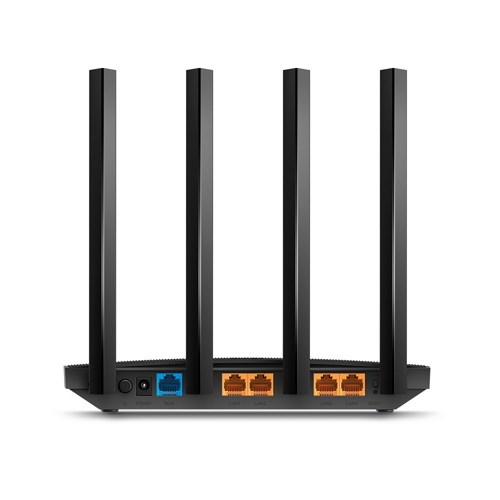

- Interface: 4 10/100/1000Mbps LAN Ports, 1 10/100/1000Mbps WAN Port
- Button: Reset Button
- WPS/Wi-Fi Button
- Power On/off Button
- External Power Supply: US version 12V/1.5A
- EU version 12V/1A
- Dimensions ( W x D x H ): 8.5 x 4.6 x 1.26 in (215 x 117 x 32 mm)
- Antenna: 4 Fixed Omni Directional Antennas
WIRELESS FEATURES
- Wireless Standards: IEEE 802.11a/n/ac 5 GHz
- IEEE 802.11b/g/n 2.4 GHz
- Frequency: 2.4 GHz and 5 GHz
- Signal Rate: 1300 Mbps on 5 GHz + 600 Mbps on 2.4 GHz
- ransmit Power: CE: <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
- FCC:<30dBm(2.4 GHz & 5 GHz)
- Wireless Functions: Enable/Disable Wireless Radio, WMM
- Wireless Security: 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions
- Guest Network: 2.4 GHz Guest Network, 5 GHz Guest Network
Reception Sensitivity:
- 5 GHz: 11a 6Mbps:-98dBm, 11a 54Mbps:-78dBm, 11ac VHT20_MCS0:-98dBm, 11ac VHT20_MCS8:-72dBm, 11ac VHT40_MCS0:-92dBm, 11ac VHT40_MCS9:-68dBm, 11ac VHT80_MCS0:-89dBm, 11ac VHT80_MCS9:-64dBm
- 2.4 GHz: 11g 6Mbps:-97dBm, 11a 54Mbps:-77dBm, 11n VHT20_MCS0:-97dBm, 11n VHT20_MCS8:-72dBm, 11n VHT40_MCS0:-92dBm, 11n VHT40_MCS9:-67dBm
SOFTWARE FEATURES
- Quality of Service: Device Prioritization
- WAN Type: Dynamic IP/Static IP/PPPoE(Dual Access)/PPTP(Dual Access)/L2TP(Dual Access)
- Management: Parental Controls, Local Management, Remote Management
- DHCP: Server, DHCP Client List, Address Reservation
- Port Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ
- Dynamic DNS: DynDns, NO-IP, TP-Link
- Access Control: Local Management Control, White List, Black List
- Firewall Security: SPI Firewall, IP and MAC Address Binding
- Protocols: Supports IPv4 and IPv6
- Advanced Features: MU-MIMO, Beamforming, Smart Connect, Airtime Fairness, Quality of Service
OTHERS
- Certification: CE, FCC, RoHS
System Requirements
- Microsoft Windows 98SE/NT/2000/XP/Vista/7/8/8.1/10, MAC OS,
- NetWare, UNIX or Linux
- Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other
- Java-enabled browser
- Cable or DSL Modem
- Subscription with an internet service provider (for internet access)
Environment
- Operating Temperature: 0c~40c (32f ~104f)
- Storage Temperature: -40c~70c (-40f ~158f)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
Package Contents
- Wireless Router Archer C80
- Power Adapter
- RJ45 Ethernet Cable
- Quick Installation Guide
